请问，有谁知道v440的Boot PROM 在那里，我找了半天，都没有找到

请问，有谁知道v440的Boot PROM 在那里，我找了半天，都没有找到，谢谢！PN：525-1970

回复 calcm

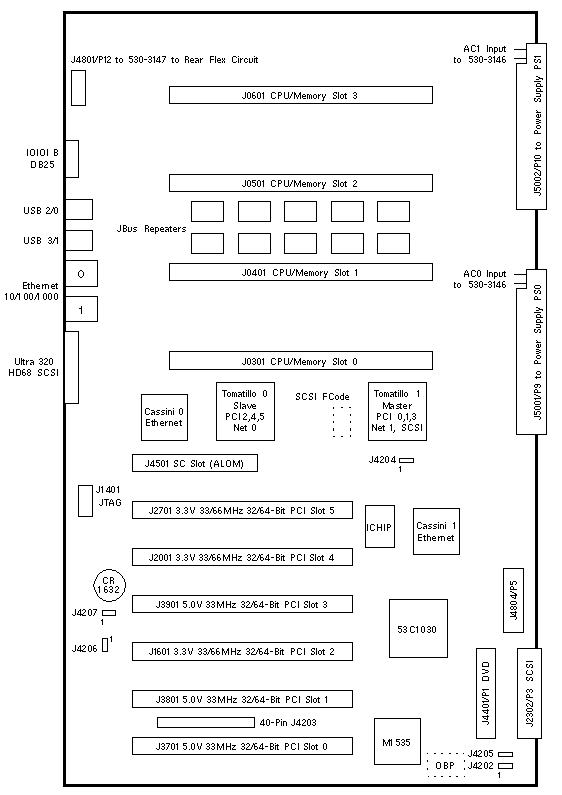

    谢谢楼上的兄弟，上面的那张图我看到了，在右下角时有一个obp，但是，是固化在主板上的，无法移动，可我在sun手册中看到v440的硬件中有Boot PROM ，还有它的PN号，是525-1970   ，可我就是在主机上没有者到这个。

  今天早上，我一开v440，就无法加电，报电源正常，Boot PROM 没有反应

回复 CU味道


    原文是：SC Alert: Host Power-On Failed: System Power OK, Open Boot not responding


请问：有人遇见过这样的问题吗？

升OBP和ALOM,BUG

Bug ID: 6485416Synopsis: SC Alert "Open Boot not responding" is reported when system is powered on, after updating OBPCategory: firmwareSubcategory: obpState: 11-ClosedDescription: Error "SC Alert: Host Power-On Failed: System Power OK, Open Boot not responding" is outputed to SC when host system is powered on, after OBP 4.22.11 or 4.22.19 are applied.

Error does not exist before update from 4.18.10, and if you downgrade OBP 4.18.10 error is NOT reported.

Note no other changes are made to the system other than OBP.

Error is NOT seen in these tested configs 1 or 4 CPUs, but is seen if you have only 2 CPUs.

Note we do not see the error on the same hardware but using 4.18.10.

OBP  4.18.10
------------
Oct 20 11:11:33 v4u-netra440b-gmp03 poweroff: poweroffed by root
syncing file systems... done

SC Alert: Host System has Reset

SC Alert: CRITICAL ALARM is set

SC Alert: CRITICAL ALARM is set
Progra
SC Alert: Host system has shut down.
v4u-netra440b-gm> poweron

SC Alert: Host System has Reset
v4u-netra440b-gm> console
Enter #. to return to ALOM.
0>Test CPU(s).....
0>Init SB
0>Initialize I2C Controller
0>Init CPU
0>DMMU
0>DMMU TLB DATA RAM Access
0>DMMU TLB TAGS Access
0>IMMU Registers Access
0>IMMU TLB DATA RAM Access
0>IMMU TLB TAGS Access
0>Init mmu regs
0>Setup L2 Cache
0>L2 Cache Control = 00000000.00f04400
0>      Size = 00000000.00100000...
0>L2 Cache Tags Test

Both version show the issue.
----------------------------

OBP 4.22.11 2006/06/12 14:42
OBP 4.22.19 2006/09/06 23:42

OBP 4.22.11
-----------
v4u-netra440b-gm>
SC Alert: Host system has shut down.

v4u-netra440b-gm> poweron

SC Alert: Host System has Reset
v4u-netra440b-gm>
SC Alert: Host Power-On Failed: System Power OK, Open Boot not responding

OBP  4.22.19
------------

v4u-netra440b-gm> poweroff
Are you sure you want to power off the system [y/n]?  y

SC Alert: SC Request to Power Off Host.
v4u-netra440b-gm> poweron
SC Alert: Host system has shut down.


v4u-netra440b-gm>
SC Alert: Host Power-On Failed: System Power OK, Open Boot not responding
console
Enter #. to return to ALOM.
1>Scrub and Setup L2 Cache
1>Setup and Enable DMMU
1>Setup DMMU Miss Handler
1>Test  Mailbox
1>Scrub Mailbox
1>CPU Tick and Tick Compare Registers Test
1>CPU Stick and Stick Compare Registers Test
1>Setup Int Handlers
0>Interrupt Crosscall.....
0>Setup Int Handlers
0>Send Int CPU 1
1>Send Int to Master CPU


SC Alert: Host System has Reset
v4u-netra440b-gm>
SC Alert: Host Power-On Failed: System Power OK, Open Boot not responding

Full POST passes without further errors reporting. This output is available if requested.    Date Modified: 2006-10-24 11:16:47 GMT+00:00

Work Around: Suggested Fix: Evaluation: Fixed by patch: Integrated in Build: Duplicate of: 6452551Related Change Request(s)ate Modified: 2007-11-13 18:28:29 GMT+00:00Public Summary:

回复 calcm


    可现在的问题是，有问题的v440是环保的，其他的v440就都不是了，现在环保的机器加不了电，要是拿到其他的v440上，ALOM卡又无法和主板上的obp通讯上级呀！这该怎么办呀？

不知道你是不是遇到的这个bug，反正calcm遇到的和bug描述中的一样，都是2CPU的机器，你可以试试把CPU拔一个下来试试。
即便是这个bug，也不是每次都起不来的
